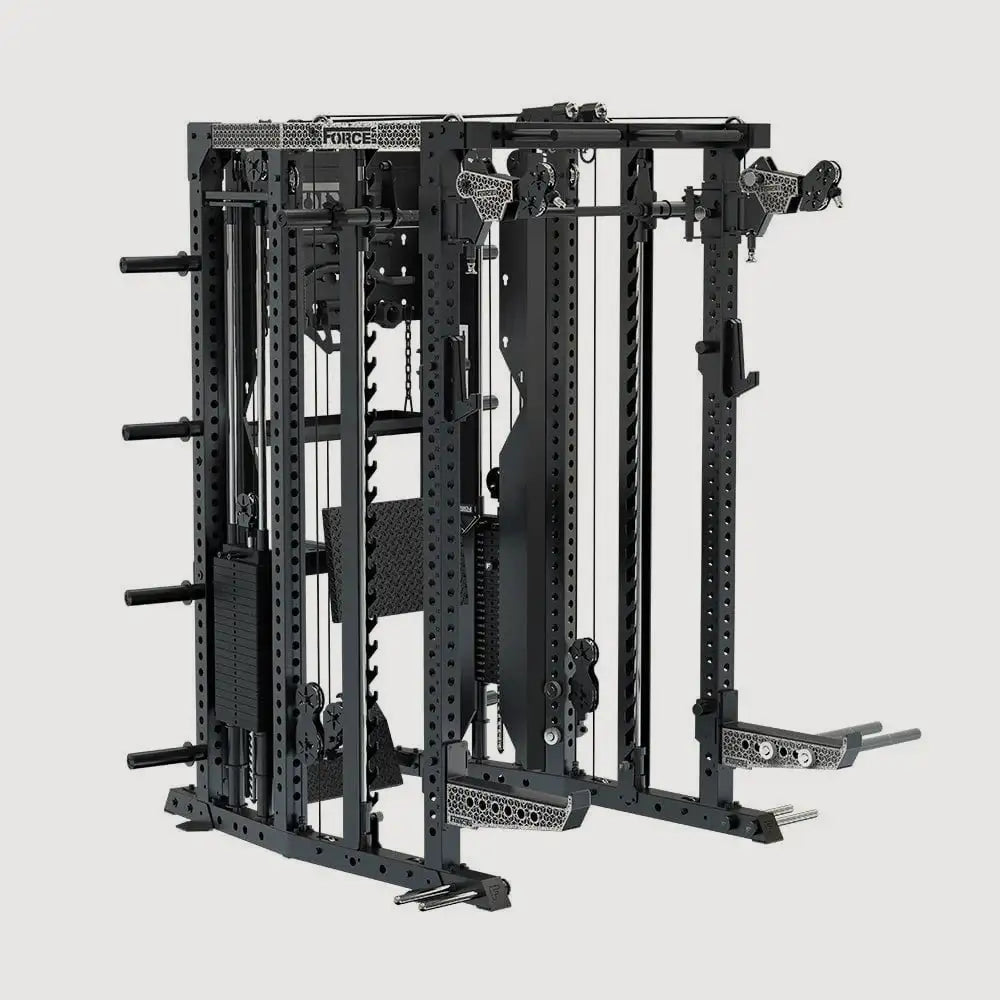

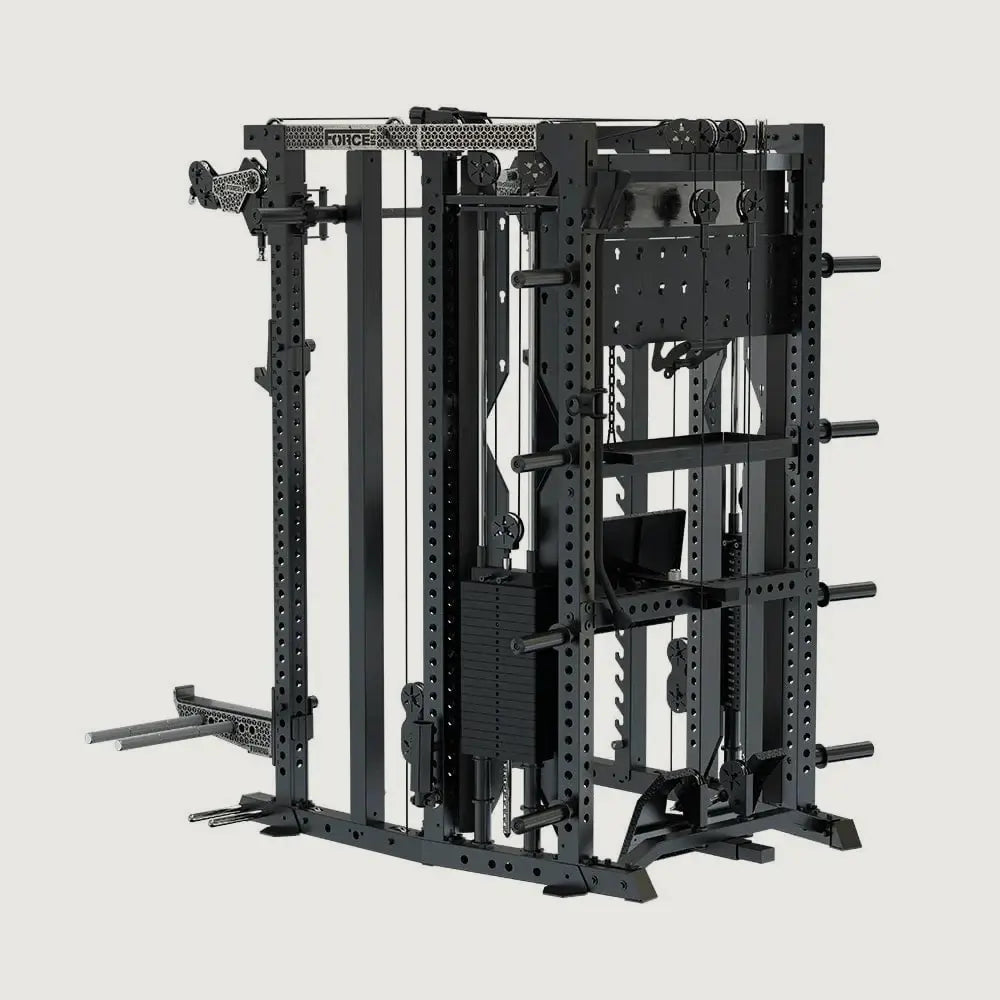

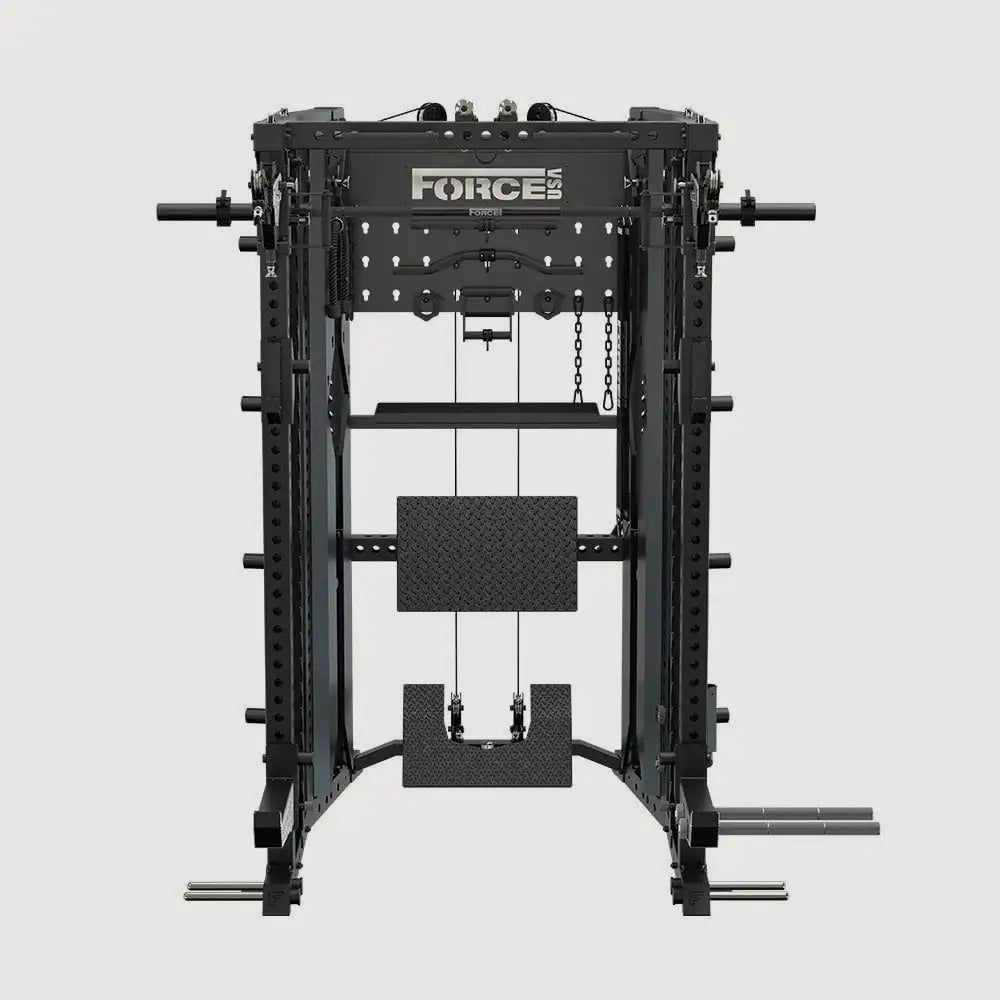

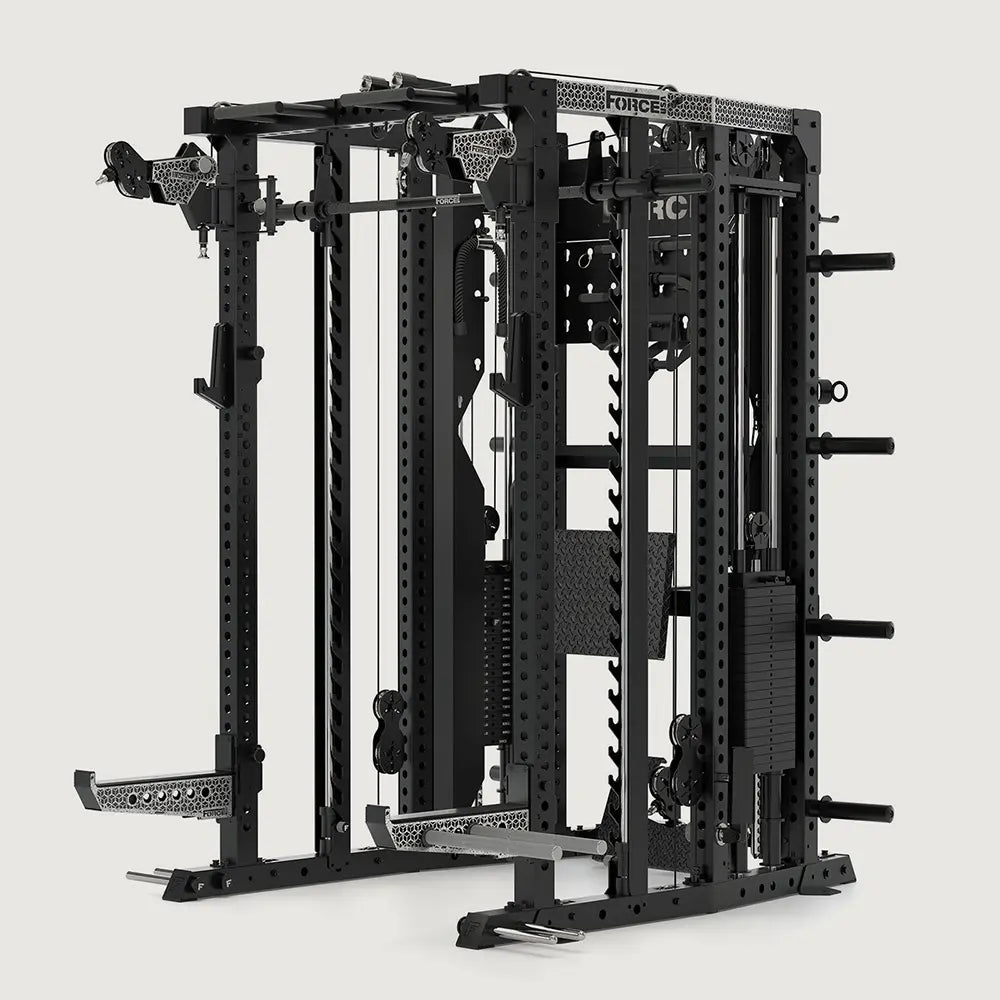

Introducing the Force USA C20, built with 3x3 uprights, 11-gauge steel, 1-inch holes, and upgradable weight stacks.

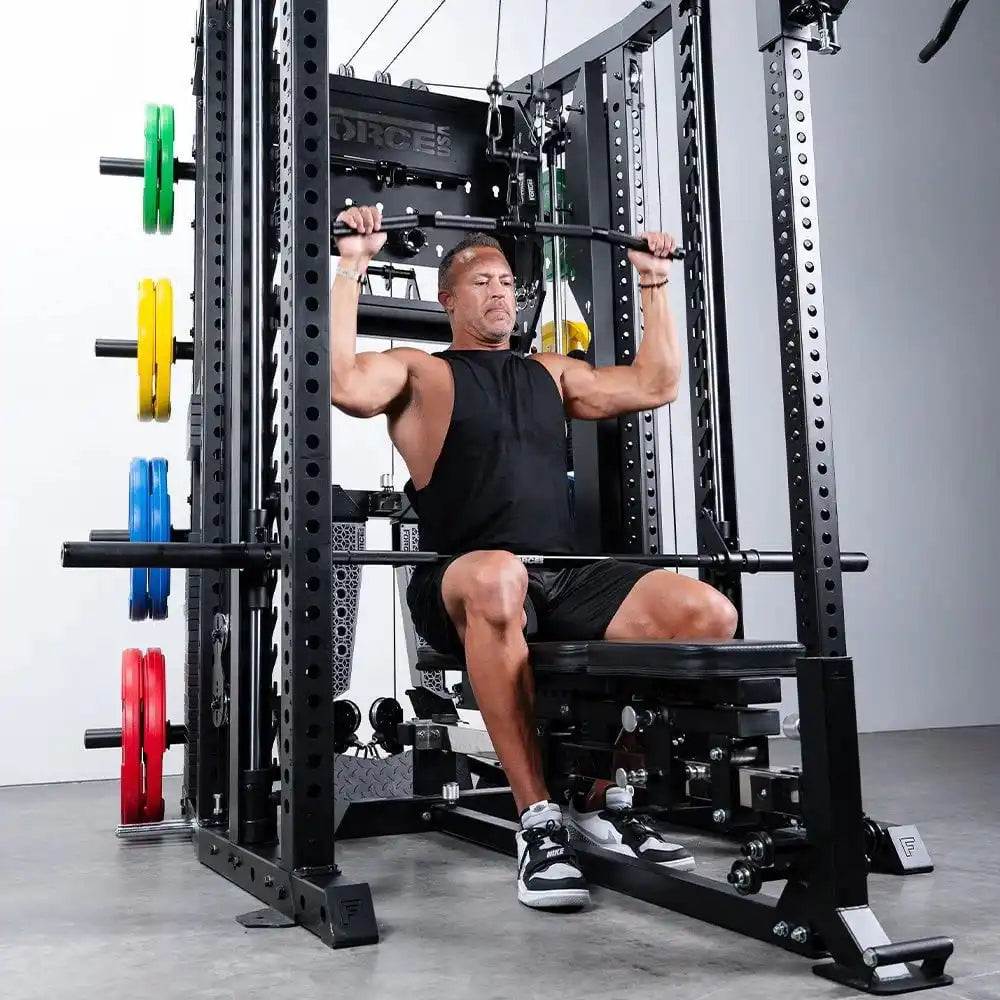

Freestyle pulley arms move up, down, in, and out with a smooth 2:1 ratio on upright trolleys. Dual 200 lb weight stacks — upgradeable to 300 lb — power the center cable system through aluminum pulleys, with upper (1:1 / 2:1) and lower (1:2 / 1:1) pulley ratios for true 90° lat pulldowns and low rows.
The real game-changer? The patent-pending Sliding Bench. It locks into the lower pulleys to deliver up to 600 lb of cable resistance for leg presses, hack squats, and more. Compact, versatile, and engineered to perform — the C20 doesn’t just fit your space, it transforms it.
Warranty
- 10 years for frames
- 2 years for cables and accessories
Features
|
|

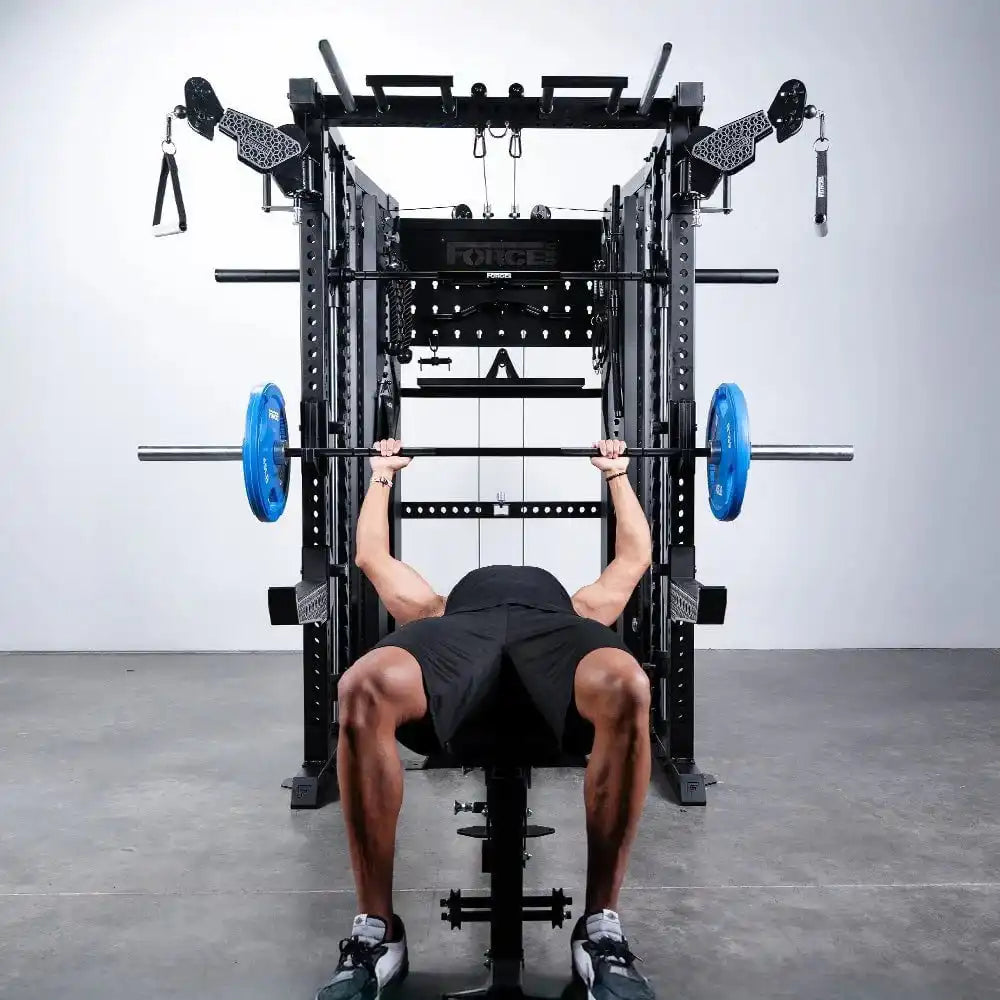

COMMERCIAL-GRADE SMITH MACHINE + HALF RACK COMBO Whether you’re powering through heavy barbell squats or perfecting your bench press form, the C20’s commercial-grade Smith Machine delivers a true gym experience at home. Designed to IPF and IWF standards with medium knurling and smooth, consistent movement, it ensures controlled, precise lifts. The front section doubles as a half rack, featuring upgraded J-Hooks and Spotter Arms for safe and confident barbell training |
![]() |
CUSTOMISABLE WEIGHT STACKS WITH MICRO ADJUSTMENTS Customize your resistance training with the C20’s dual 200 lb (90.7 kg) weight stacks, upgradeable to 250 lbs (113 kg) or 300 lbs (136 kg) per stack with the optional Weight Stack Upgrade. Each stack comes with a built-in 5 lb (2.26 kg) fractional plate, allowing for precise weight increments. Whether you’re building max strength or refining accessory work, this setup keeps your training versatile and on point. |
![]() |

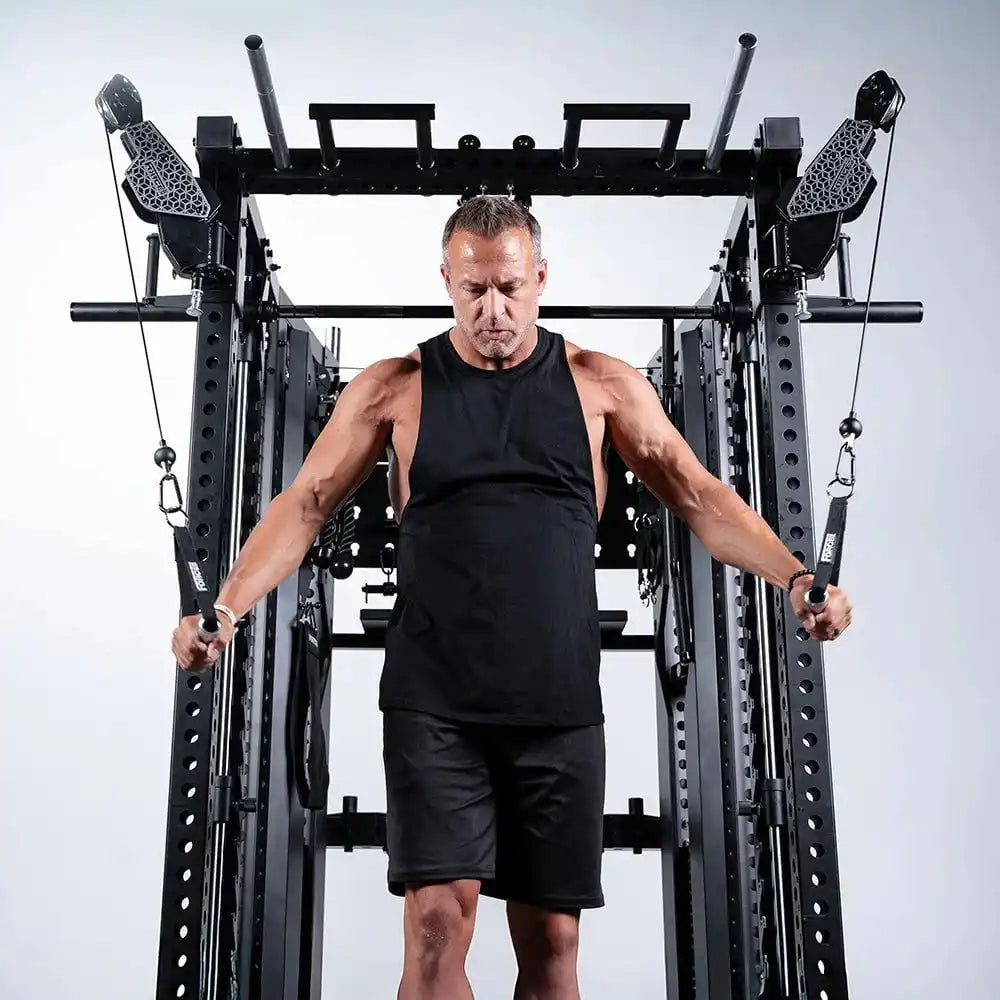

SIX-PULLEY SYSTEM FOR ULTIMATE VERSATILITY The C20 comes with six pulley stations for maximum training versatility. Our Freestyle Pulleys adjust up to 190cm at the highest point and down to the lowest setting, swinging freely left to right or locking in place for 180-degree movement options. Dual low pulleys at the base are ideal for seated rows or use with our patent-pending Sliding Bench. A dedicated double high pulley station can also be linked with the Dual Pulley Connector to double the workout intensity for upper-body exercises. |
![]() |

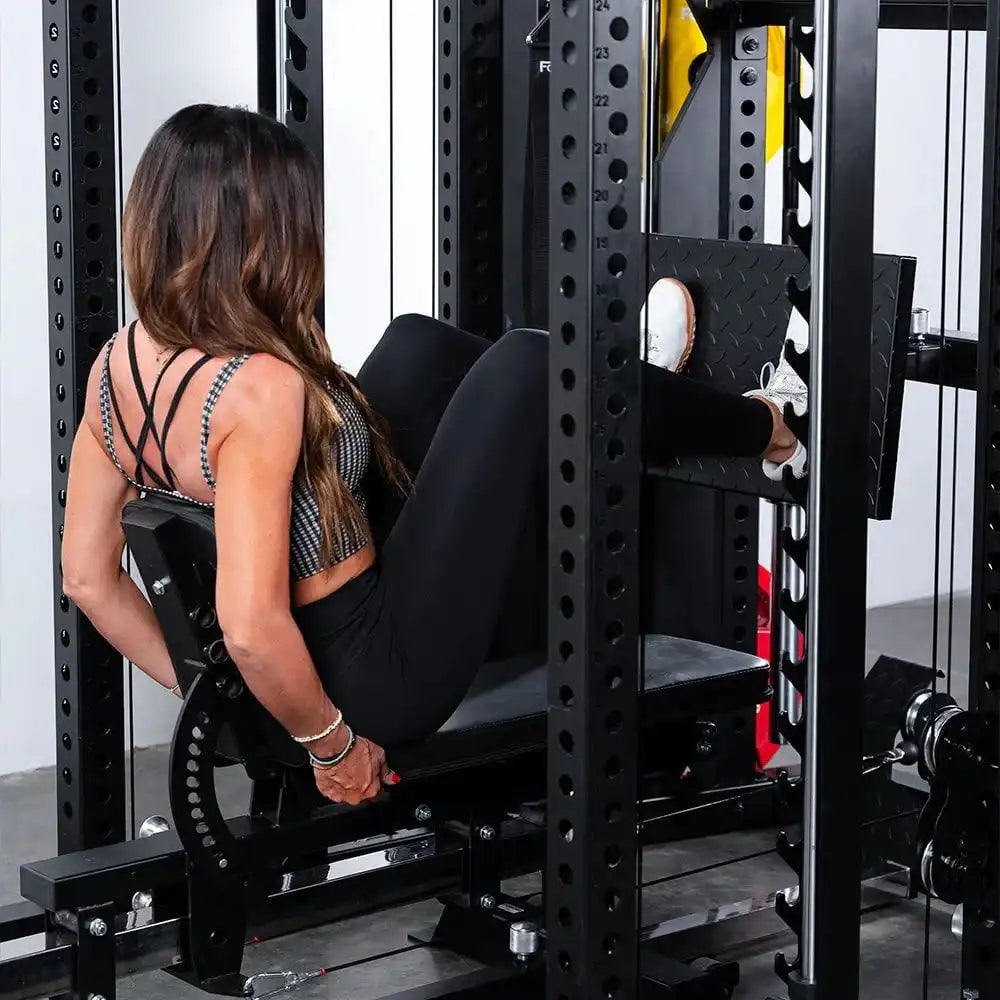

SLIDING BENCH COMPATIBLE Upgrade your C20 with our patent-pending Sliding Bench — a space-saving design that replaces five machines in one. From presses and squats to curls and extensions, it transforms your leg day with ease. Connected directly to the lower center pulleys, it delivers up to 600 lb of cable resistance with no extra weight plates needed.
|
![]() |
INDUSTRY LEADING STORAGE SOLUTIONS Keep your gym space organized with the Force USA C20’s built-in storage system. It features a pegboard with pins, shelf storage, a barbell holder (x1), plate holders (x8), and extra pegboard mounts on the shrouds — five convenient storage solutions in one compact setup. |
![]() |

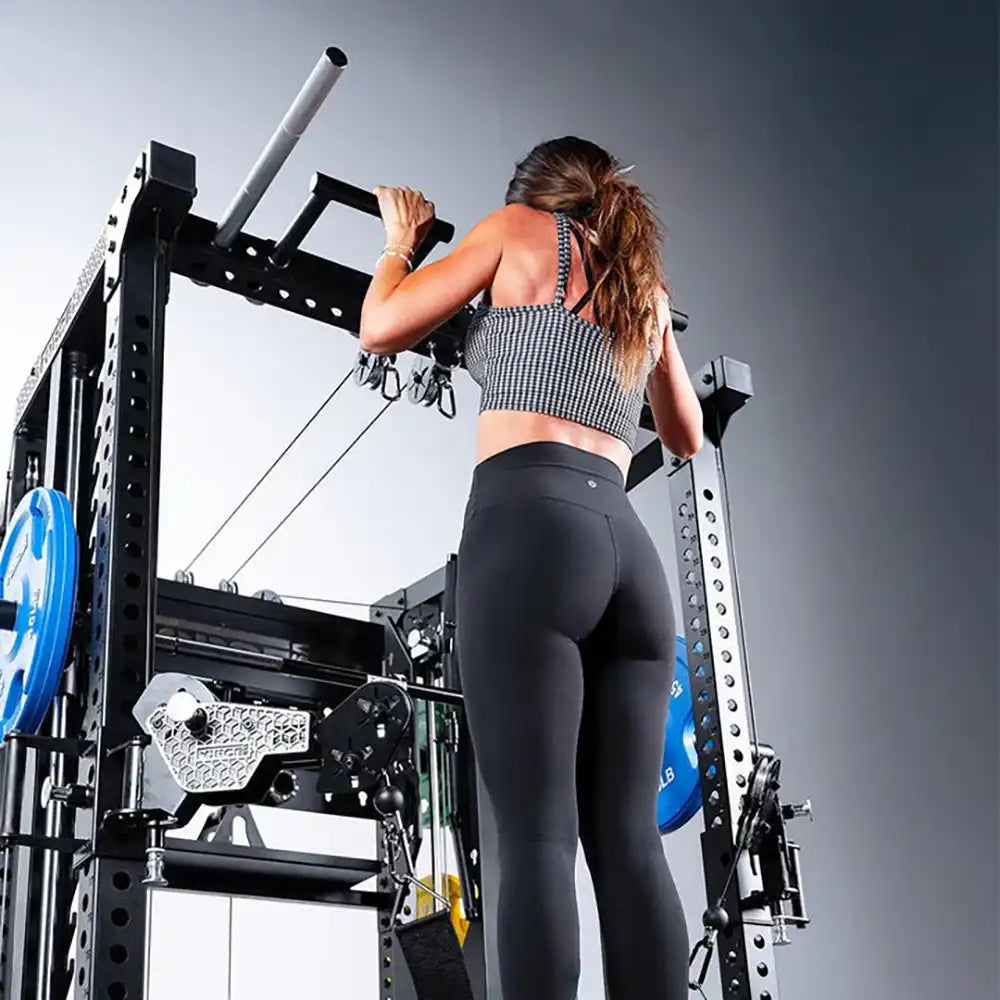

NEXT-LEVEL BODYWEIGHT TRAINING OPTIONS Bring functional bodyweight training to your workouts with the integrated multi-grip pull-up bar and new spotter arm dip station. Both feature knurled grips for extra hold and are built into the frame for maximum stability. A fixed TRX hook adds even more versatility for suspension training, rings, or bands — ideal for core, mobility, and rehab exercises. |
![]() |

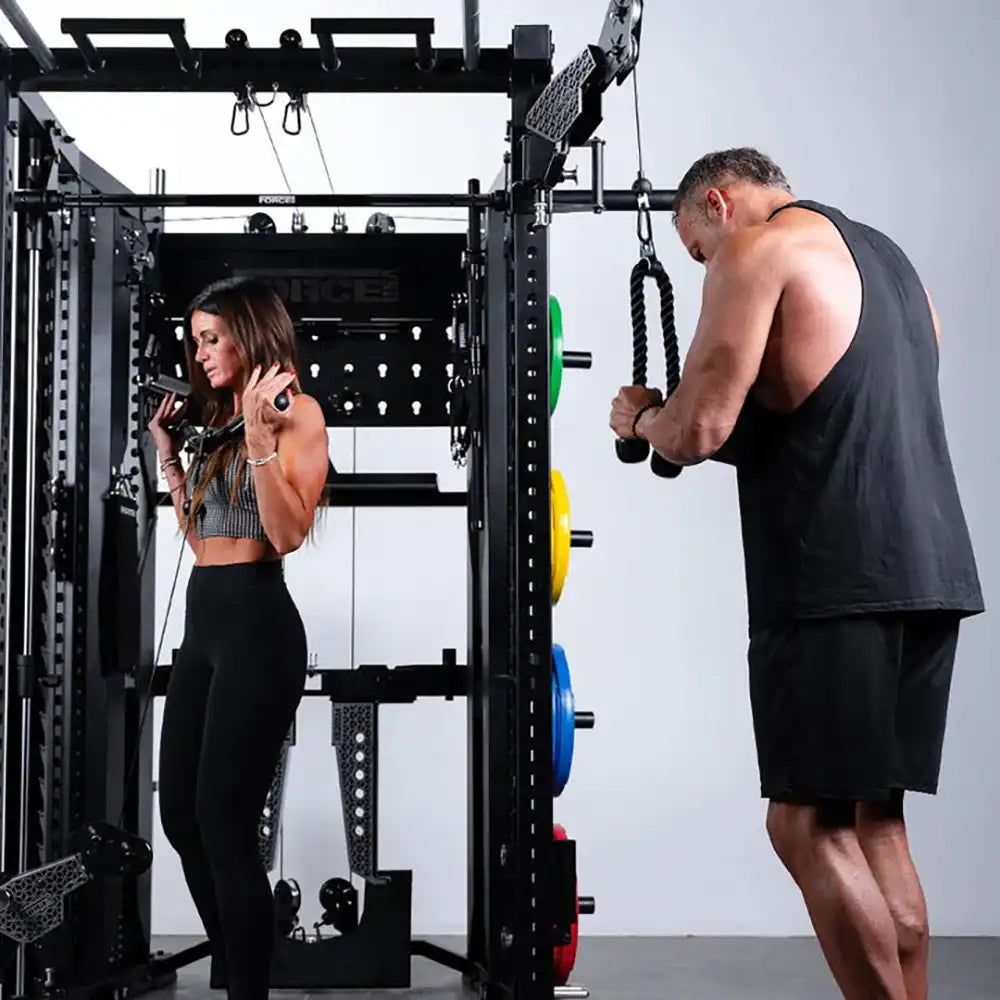

PREMIUM ACCESSORIES AND NEXT-GEN COMPONENTS This machine features durable aluminum pulleys for smooth, consistent performance with every rep. It also comes equipped with essential attachments like an EZ Curl Bar, Lat Pulldown Bar, Tricep Rope, Triangle Row Handle, Ankle Cuffs, and more, so you’re set for any workout. The magnetized landmine attachment adds even more training variety and stores neatly when not in use. |
Specifications:
Usage: Home / Commercial
Cable Ratios:
- 2:1 on uprights and lat pulldown station (1:1 when combined)
- 1:1 on low row station and for the sliding bench
Weight Stacks: 200 lbs / 90.7 kgs (Upgradeable to 250lbs/113kg or 300 lbs / 136 kgs)
- Frame Width: (Outside to Outside Uprights): 49” / 124.5 cm
- Frame Width: (Inside to Inside Uprights): 43” / 109.2 cm
Exterior: 1956 mm (W) × 2007 mm (D) × 2235 mm (H)
Interior: 1092 mm (W) × 1194 mm (D) × 2057 mm (H)

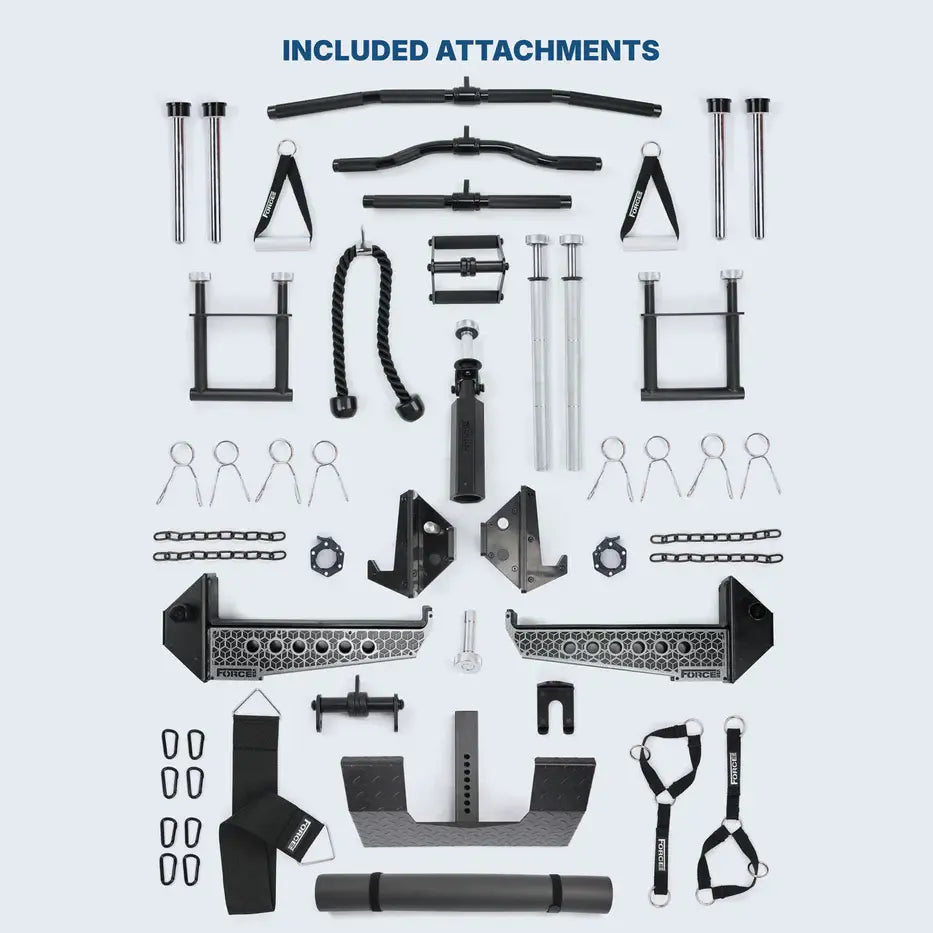

Attachments Included:
- Dip handlebars x2
- Aluminium Revolving Short EZ Curl Bar x1
- Aluminium Revolving Short Bar x1
- Aluminium Revolving Lat Pulldown Bar x1
- Tricep Rope x1
- Single Knurled Handles x2
- Close Grip Triangle / Landmine Handle x1
- J-Hooks x2
- Spotter Arms x2
- Magnetic Landmine x1
- Magnetic Collars x2
- Extension Chains x4
- Oval Black Carabiner (rated to 400kg) x8
- Peg Board Pins x12
- Ankle Cuffs x2
- Bodyweight assisted strap x1
- Cable Connector x1
- Mag Pins x4
- Spring collars x8
- Hexagon L-Brackets x4 (for bolting the machine to the floor)
- Barbell holder x1
- Aluminium pulleys
- Low Row Footplate
- The C20 also typically includes 4 magnetic pegs specifically for attaching resistance bands to the frame.
Tech Specs
-
Usage: Full commercial use
-
Frame: 3x3” (75 x 75 mm) steel uprights, 3 mm thick, matte black finish
-
Cable ratios:
∙ 2:1 on uprights and lat pulldown (1:1 when combined)
∙ 1:1 on low row station and sliding bench attachment
-
Pulley stations:
∙ 2 pulleys on uprights (2:1 ratio each)
∙ 2 low pulleys at the base (1:1 ratio combined 1:2)
∙ 2 high centre pulleys (2:1 ratio each, combined 1:1)
-
Weight stacks:
∙ Standard: Dual 90 kg (200 lbs)
∙ Upgrade options: 112.5 kg (250 lbs) or 135 kg (300 lbs) per stack
∙ Includes 2.5 kg (5 lbs) micro weight plates
-
Smith machine:
∙ Black bar with IWF and IPF markings
∙ Refined medium knurling
∙ Stores away at 1.9 m height
-
Pull-up bar: Adjustable width handles
-
Spotter arms: Can double as dip handles with knurling
-
Storage:
∙ Pegboard system with 12 pins included
∙ 8x plate holders
∙ 1x barbell holder
∙ Shelf for accessories and essentials
∙ Additional pegboard holes on shrouds
-
Dimensions:
∙ Frame width: 124.5 cm (49”) outside uprights
∙ Inside uprights: 109.2 cm (43”) - Additional features:
∙ Reinforced J-hook and spotter arm locking system
∙ Aluminium pulleys
∙ Suspension trainer attachment point
-
Optional attachments: bench, weight stack upgrade
- Warranty: Lifetime on frame, 2 years on parts
