Professional-Grade Dual-Function Cable Training

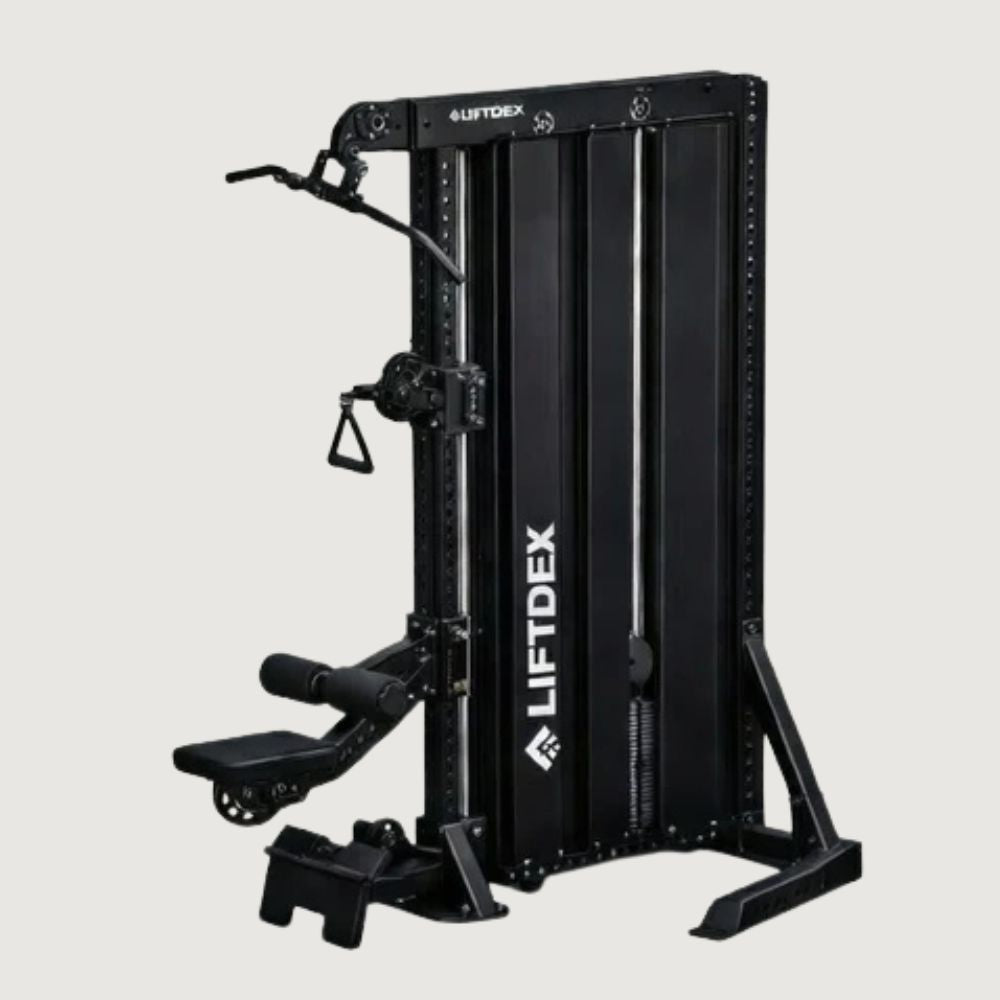

The Liftdex Tower Cable Machine is a commercial-grade cable station engineered for high-traffic strength training environments. Built with galvanized wire rope, aluminum pulleys with 180-degree swivel front pulley, and hard-chrome bars, it delivers versatile cable resistance across lat pulldown, low row, and adjustable trolley functions with a maximum capacity of 450 lbs and effective working weight of 225 lbs via 2:1 mechanical advantage.
The machine features 34 distinct height adjustment positions across an 88-inch vertical cable travel range, enabling targeted upper-body and functional strength work. A telescoping footplate with seven bracing positions stabilises low row movements, while the included D-handles, lat pulldown bar, and low row bar support immediate training—all compatible with standard cable attachments for extended exercise variety.
Key Details & Benefits
- Dual 1:1 pulleys (lat pulldown and low row) plus 2:1 mechanical-advantage adjustable trolley for compound and isolation training
- Aluminum pulley construction with 180-degree swivel front pulley for smooth, multi-directional movement
- Hard-chrome lat pulldown bar and knurled steel D-handles included; compatible with aftermarket cable attachments
- Telescoping footplate with seven adjustable positions for stable low row setup across body types
- 450 lbs maximum load capacity; 10–20 lbs minimum usable weight enables controlled warm-up and rehabilitation work
- 34 height stops across 88-inch cable travel range (trolley: 14"–79" from ground; cables: 10.8"–88.8")
- Metallic black finish; galvanized wire rope with raw steel core resists corrosion in commercial facilities
Who Is This For
Strength coaches, commercial gym owners, and serious home lifters building a multi-station cable training setup. The dual-function design—lat pulldown, low row, and adjustable trolley—makes it ideal for gyms requiring space-efficient, high-capacity equipment. Athletes progressing through hypertrophy, strength, and functional movement phases will benefit from the 2:1 mechanical advantage and 34 height positions.
Specifications
- Height: 92.1 inches (234 cm)
- Width: 45.5 inches (115.6 cm)
- Depth: 54.9 inches (139.4 cm) with footplate retracted
- Lat Pulldown & Low Row Capacity: 450 lbs (204 kg)
- Trolley Capacity: 450 lbs (204 kg); 225 lbs effective load at 2:1 ratio
- Minimum Usable Weight: Lat pulldown / low row: 20 lbs (9 kg); trolley: 10 lbs (4.5 kg)
- Pulley Ratio: Lat pulldown and low row 1:1; adjustable trolley 2:1
- Cable Travel Length: Trolley: 108 inches (274 cm); lat pulldown and low row: 54 inches (137 cm)
- Trolley Adjustment Range: 14 inches to 79 inches from ground
- Cable Height (No Attachment): 10.8 inches to 88.8 inches from ground
- Height Adjustment Positions: 34 distinct stop points
- Weight Horn Loadable Length: 6.3 inches (16 cm)
- Pulley Material: Aluminum with 180-degree swivel front pulley
- Cable: Galvanized wire with raw steel core
- Bars & Handles: Hard-chrome lat pulldown bar; knurled steel D-handles; compatible with standard cable attachments
- Footplate: Telescoping with seven adjustable positions
- Finish: Metallic black
